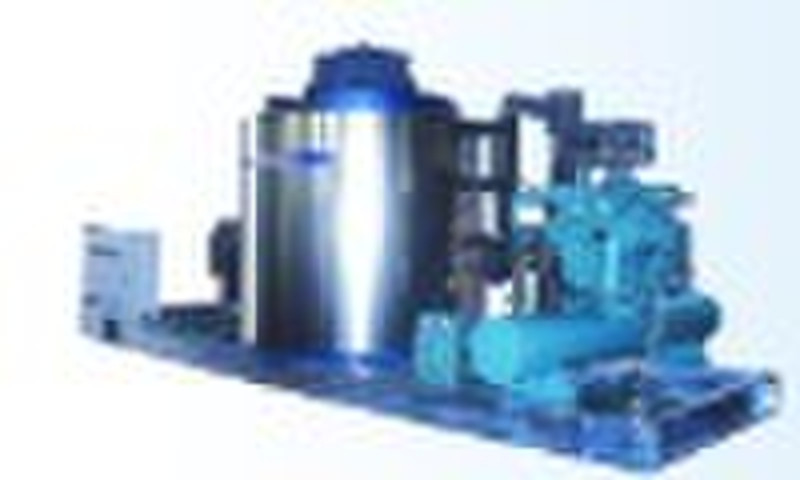

5M-500 Flake Ice Machine

Middle and large serial of flake ice-making unit extensively put into large qautity of ice needed field,such as large fishery wholesale market,food processing company and drychemistry. Configuration explanation: 1.Actual ice-making capacity differs with water temperature,environment and compressor motor power. 2.Standard power supply 3N-380V/50Hz,if necessary,which can also be changed into 3N/60Hz,200V,220V,400V,440V according to requirements. 3.This type is made for fresh water.Dedicated saltwater models are required if salt concentration exceeds 200ppm. 4.This machine is designed for installation.Contact us for information on models designed for outdoor use. 5.The refrigerant is R-22,and evaporate temperature is -20°C,or another R-404a. 6.Ammonia(NH3)may be used as refrigerant if required.Please contact us in advance. Specifications Compressor motor power is a reference value at the condition of water supply temperature 16°C,evaporation temperature -20°C,condensation temperature 40°C,and a 50Hz power supply for reference. ModelCapacity(kg)Installation power(kW)Compressor power(kW)Inlet tube dimension(inch)Net weight(kg)Dimension(mm)LWH5M-3003,00010.138.451/2″510251078012955M-5005,00014.8513.071/2″7202560100014505M-8008,00023.1619.611/2″1,1204000125616855M-100F10,00028.2524.33/4″1,3504000125618345M-150F15,00045.0536.33/4″1,6004500220022815M-200F20,00058.9549.53/4″2,1504500220026705M-250F25,00072.0561.93/4″2,2205000190028765M-300F35,00087.5575.43/4″2,640500019003126PS.Ice-making machine with capacity of 30ton/24hours is available if required by customers,and the largest capacity for single unit is 60ton/24hours.
